ImageGrid™ Plus Server DICOM Router

ImageGrid DICOM router software and server solutions effectively resolve patient conflicts and handle complicated patient image routing. ImageGrid Plus expands Candelis’s ImageGrid product to help the workflow in extremely high-volume, complex healthcare facilities. Effectively utilize DICOM server software solutions in smaller centers and bigger facilities, improving patient outcomes with faster diagnosis and an increase in patient care.

Book A Demo

ImageGrid Plus by Candelis

The best DICOM router for healthcare should provide a storage and server solution integrated into one seamless router. DICOM storage effectively saves high volumes of data with precise, fast image routing. Seamlessly manage, share and collaborate on patient images with DICOM server solutions. Learn how ImageGrid Plus solves the problems faced by enterprise medical imaging operations.


Utilize the DICOM storage server to speed up data management and reading of patient images, giving you more time to focus on patient well-being:

  • Ultra high-performance software & hardware
  • Rule-based tag morphing capabilities to address MRN consistency issues, automated Quality Control, and anonymization profiles
  • Extensive parallelization configurability to accommodate system load-balancing
  • Focal point for modifying study metadata and ensuring transfer syntax consistency
  • Intelligent parsing and routing of studies, series, and individual instances
  • Extensive notification infrastructure – text or email – to provide timely notification concerning workflow, hardware, and software issues
  • Cost-effective, and efficient solution for sharing data with radiologists, surgeons, physicians, nurses, and technologists
  • ImageGrid Plus server can function as one point of change for multiple modalities
  • 1.4TB RAID 1 to 21TBs RAID 6 usable local archive
  • 10 GbE network connection
  • Automatic ASTRA™ cloud backup for compliance with HIPAA requirements
  • Self-monitoring, automated reporting
  • Web-based system administration, dashboard and operator interface

Ultra High Performance DICOM Server Software

Candelis DICOM image routers manage the movement of radiology images so your team quickly gets patient images from various acquisition devices. The DICOM image server allows for ethical, speedy collaboration to reduce patient waiting time. With lightning-fast study transfers and an increase in radiology efficiencies, DICOM image server handles complex routing with ease.

ImageGrid Plus is an ultra-high-performance platform that can support high volume healthcare environments of 1,000+ modalities. The ImageGrid Plus platform is tailored for facilities with an overtaxed central system in the radiology department, and where complex routing rules and DICOM tag morphing are necessary to support the radiology work environment.

Capable of handling a massive number of concurrent requests, Candelis’s new ImageGrid Plus ensures fast, efficient and reliable delivery of images.

Eliminate Delays

Capable of handling a massive number of concurrent requests, Candelis's new ImageGrid Plus ensures fast, efficient and reliable delivery of images. Using solid state disk technology and a ultra-fast network card (10 GbE), healthcare organizations will be able to transfer images and data extremely fast and gain a competitive advantage from a clinical, security, financial, and operational perspective.

The new ImageGrid Plus server enables fast and concurrent delivery of even the largest studies across the entire health system and provides organizations the ability to achieve the highest levels of business continuity. Gone are the complexities of traditional routing - and the manual tasks required to cope with them. It is the perfect solution for enterprises that experience high traffic, and heavy file loads for multiple, simultaneous jobs.

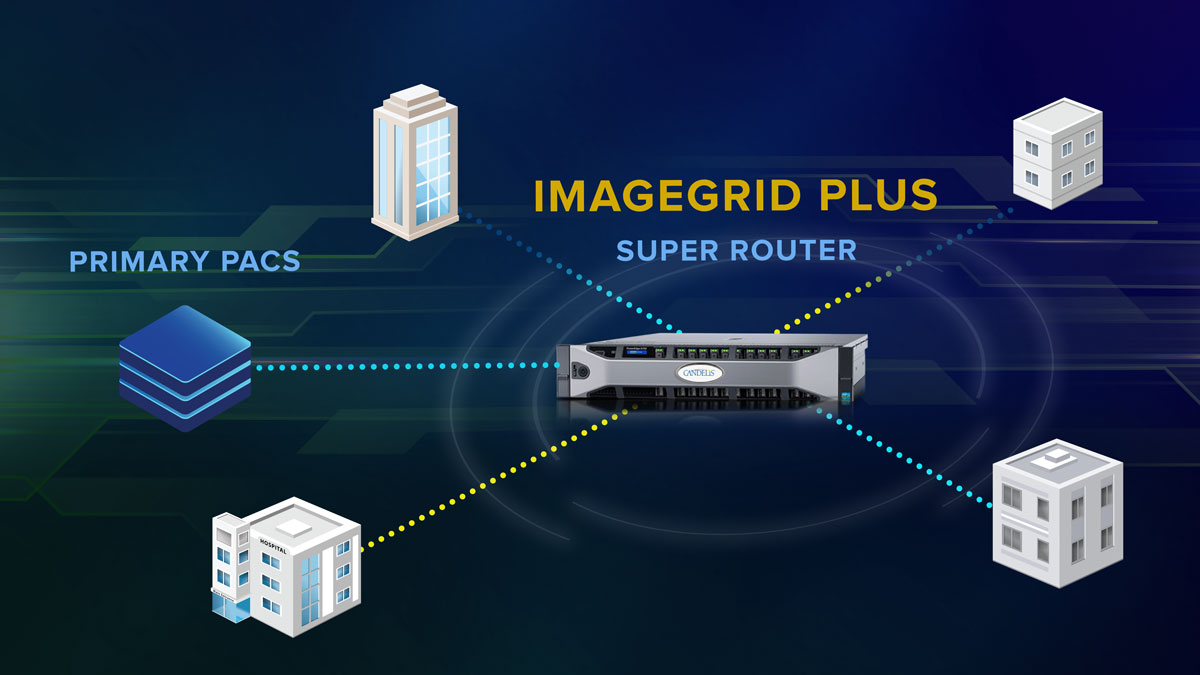

Central Configuration Server

The ImageGrid Plus can become your central configuration server for your enterprise, eff­ectively enabling you to administer your modalities and other DICOM systems from a single server. Instead of the hassle of making the same changes at multiple modalities when problems arise at your PACS, you can let the modalities generate data how you choose and administer and shape the data that reaches your PACS at one point only - the ImageGrid Plus.


Book A Demo

DICOM Router System Features


  • Head Unit
    • 2-drive standard
    • 8-drive capacity


  • Comprehensive web-based user interface for system administration


  • Quad-Port Gb
  • Dual-Port 10 Gigabit SFP+


  • HL7 Support for integration with 3rd party RIS, HIS or EMR
  • ASTRA integration for transfer, sharing, report and key image distribution, browser-only study visualization, backup/restore, archive/retrieve and disaster recovery


  • Standard Dual Processor
  • 2x 12-core / 24-thread Intel Gold family
    • 16.5 MB L3 cache
  • 256 GB DDR4 2666 MT/s


  • 1 Year Hardware with Next Business Day on-site (US and in over 100 countries)
  • 1 Year Software telephone and e-mail support
  • Extended Service program providing both Updates and Upgrades to in-service customers




  • Head Unit
    • 2.9 TB Raw (1.4 TB Usable) RAID 1 to 27.9TB Raw (21.0 TB Usable) RAID 6 configurations


  • 2U Rack Mountable Head Unit
    • 3.42” H x 17.09” W x 26.72” D (in)
    • 86.8 H x 434.0 W x 678.8 D (mm)
    • Rack Weight: 73 lbs (33.1 Kg) maximum configuration


  • Power Rating: 100 - 240 VAC, 50 – 60 Hz (input range 90 – 264 V, 47 - 63 Hz)
  • Input Current: 2A at 220 VAC, 4.1A at 110 VAC, 50 - 60 Hz
  • Head Wattage: 444 W input, 637.4 W maximum


  • Head: 1515 btu/h, 2174.9 btu/h (maximum configuration)


  • 50ºF to 95ºF (10ºC to 35ºC)
  • 10% to 80% relative humidity with 84.2ºF (29ºC) maximum dew point (non-condensing)
  • Altitude: 10,000 ft (3,048m) maximum
    • For altitudes above 3117 ft, maximum operating temperature is de-rated 1°F/547 ft (1°C/300 m)


Candelis products have the following certifications:

  • Electromagnetic Compatibility (EMC) and Product Safety compliance based on International (IEC and CISPR standards) and applicable national standards
  • Compliant with the Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU and REACH regulations
  • CE certification through NSAI
  • Candelis Inc. is certified to ISO 13485:2016 as well as MDSAP requirements through NSAI

Robust, Versatile DICOM Server Solutions

The ImageGrid Plus Server provides efficient DICOM router software that simplifies complex data routing. Free up your time to concentrate on patient welfare. Get started today by booking your free demo. You can also contact us online for more information.
